Jawa

JAWA 350 OHC

Classic three-strokes now in two- and four-stroke versions

Photo for the article JAWA 350 OHC

JAWA 350 OHC motorcycles meet the current EURO V standards. This standard not only sets higher demands on emission limits, but also on operational safety. JAWA 350 OHC models are equipped with ABS brake assist, a first for JAWA motorcycles. The lower build of the motorcycle offers better handling and usability even for shorter riders. Your riding pleasure will certainly be enhanced by the fuel consumption of just over three litres of petrol per 100 km.

JAWA 350 OHC - the design is based on the JAWA 350, type 634, which was mass-produced in the 1970s and 1980s, genetic elements such as the exhaust are shaped like a series of four-stroke motorcycles such as the JAWA 500 OHC.

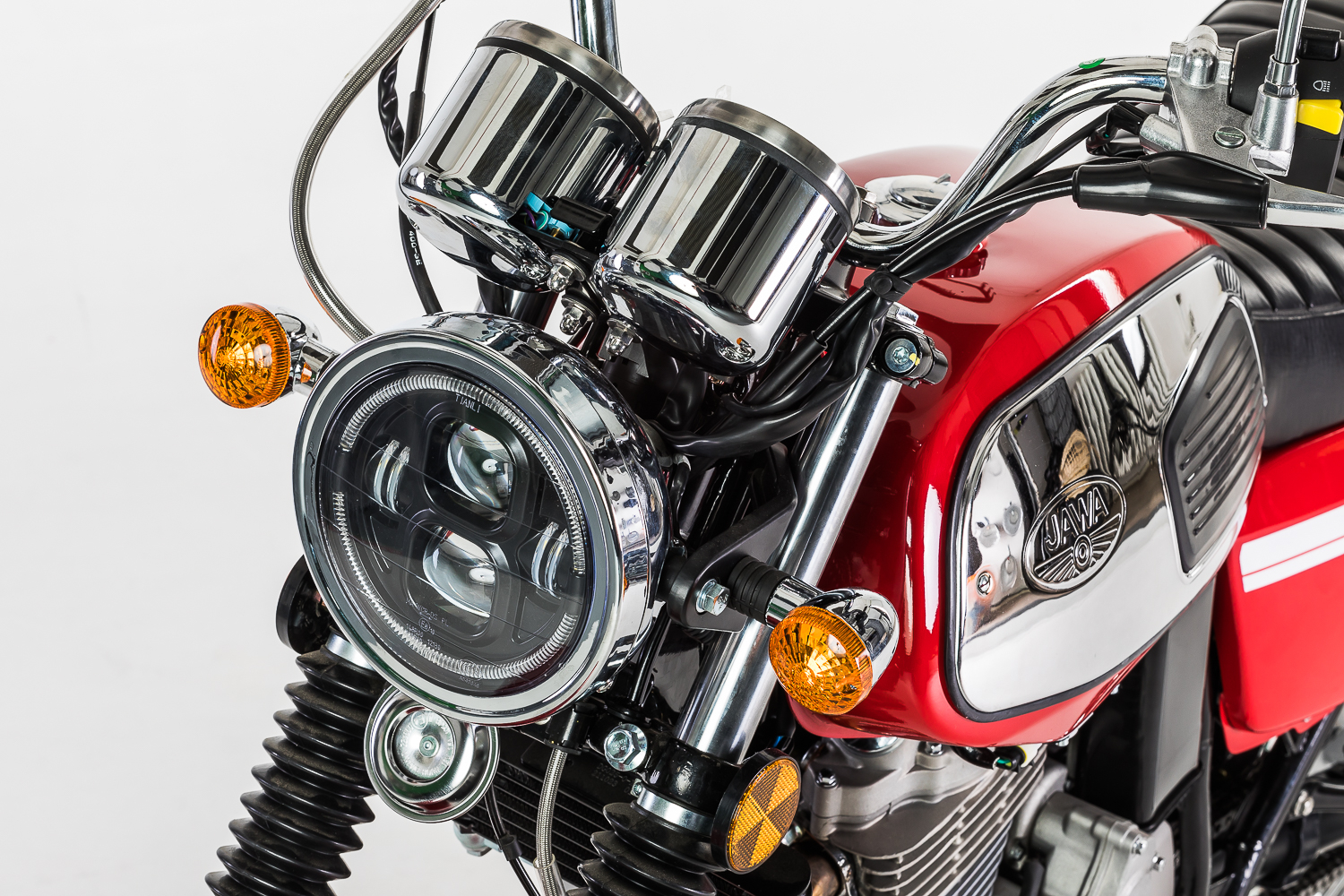

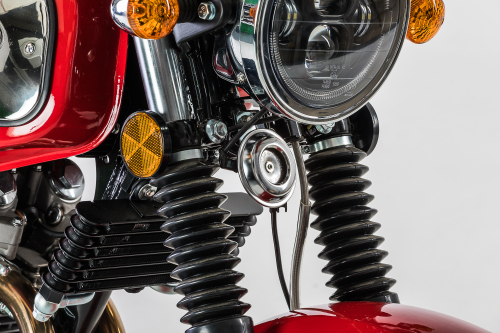

JAWA 350 OHC Sport - After the successful launch of the JAWA 350 OHC Scrambler, it was clear to continue with this style of motorcycle. The transition to the new EURO V homologation standard required minor technical changes, but in terms of the overall concept of the motorcycle, these were really minimal changes. That minimum no doubt contributes to the improved rideability of this popular model. These include the rear fork modification, rear disc brakes, a new oil cooler and a new headlight led. Like its predecessor, the design of the JAWA 350 OHC Sport is intended to build on the rich success of JAWA motorcycles in motorcycle competition. The dominant and traditional feature is the classic drop-shaped tank. Technically, this model is identical to the JAWA 350 OHC.



Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC
Photo for the article JAWA 350 OHC

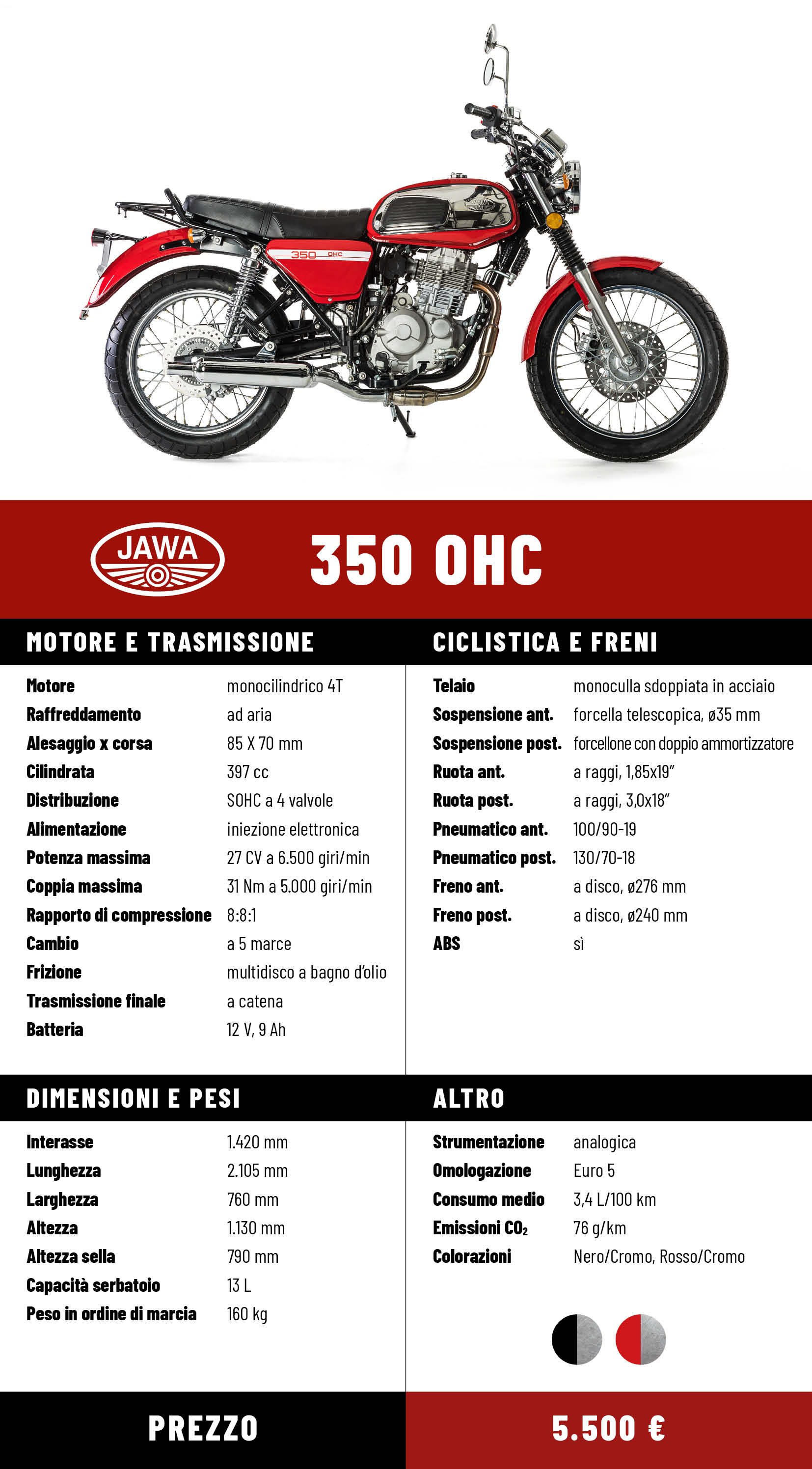

Technical data

Engine four-stroke – air-cooled
Number of cylinders 1
Bore x Stroke (mm) 85x70
Displacement volume 397.2
A compression ratio 8.8:1
Maximum power (kW/rpm x min-1) 20.0 kW/6500 rpm
Maximum torque (Nm/rev x min-1) 31.0 Nm/5000 rpm
Starting the engine electric
Transmission 5
Wheelbase (mm) 1420
Seat height (mm) 760
Tank volume (l) 12.5
Reserve (l) 2
Front wheels ("") 1.85 x 19"
Rear wheels ("") 3.00 x 18"
Front tire (") 100/90 - 19"
Rear tire ("") 130/70 - 18"
Front suspension 120 mm
Rear suspension 70 mm

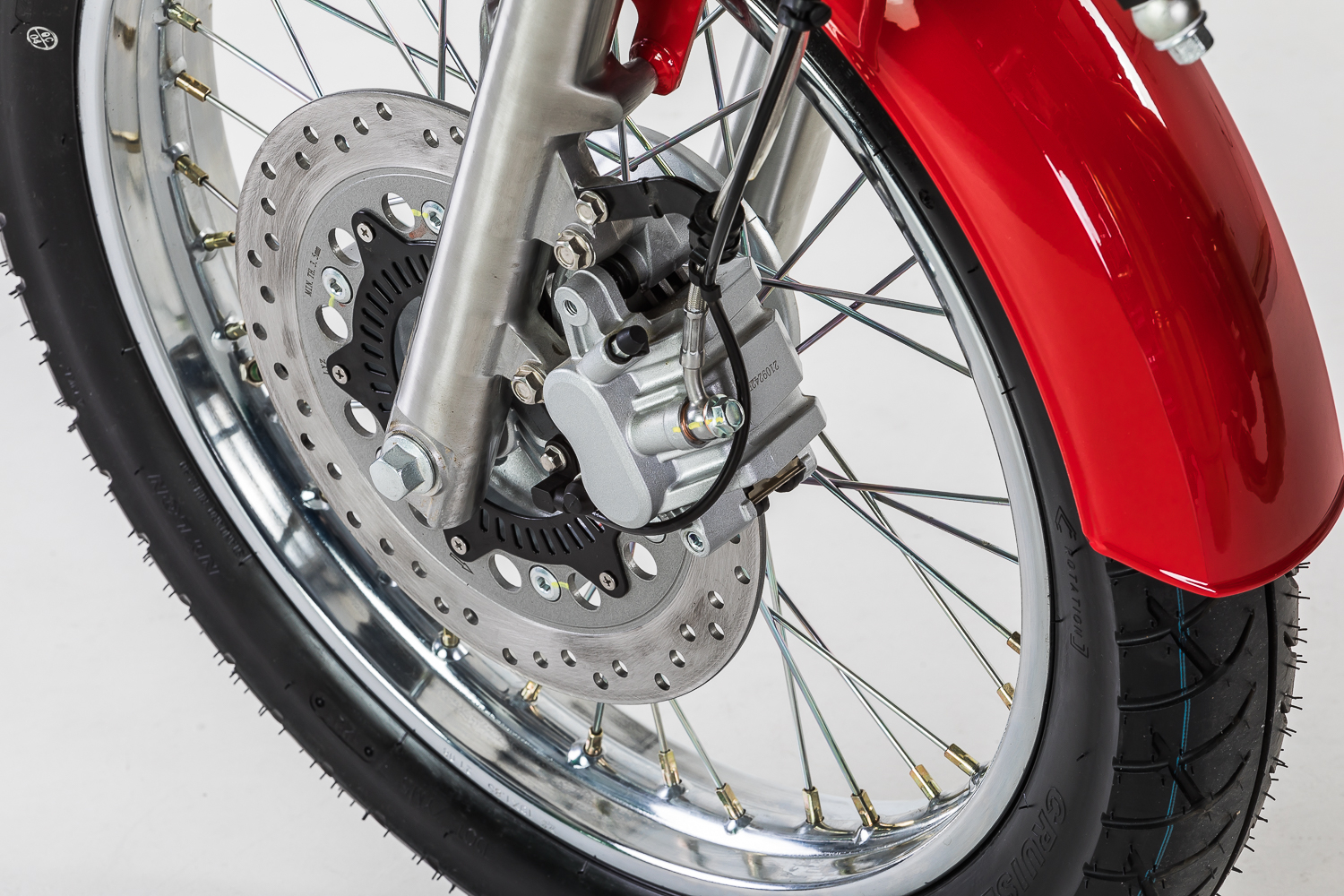

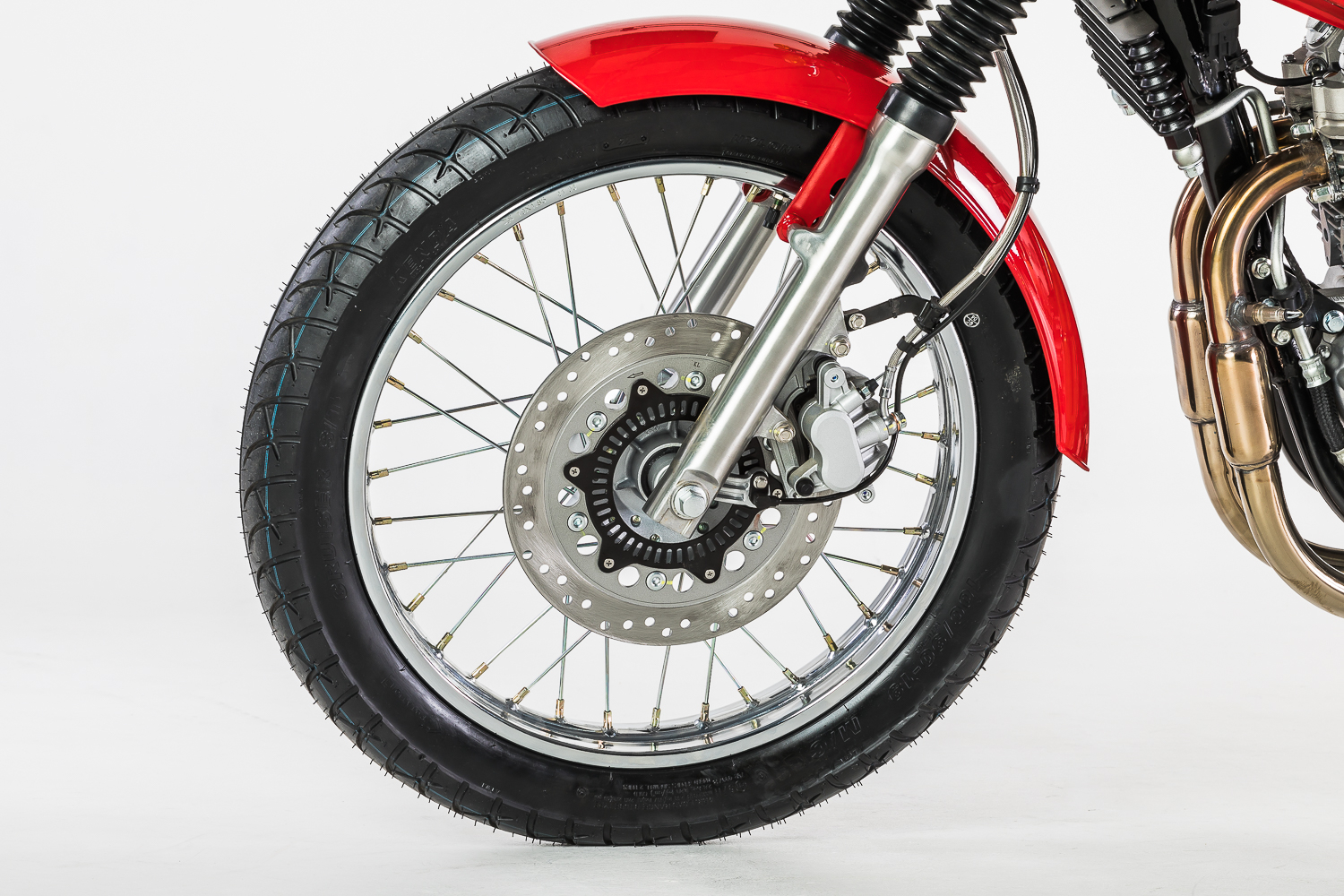

Front brake with ABS disc 276 mm

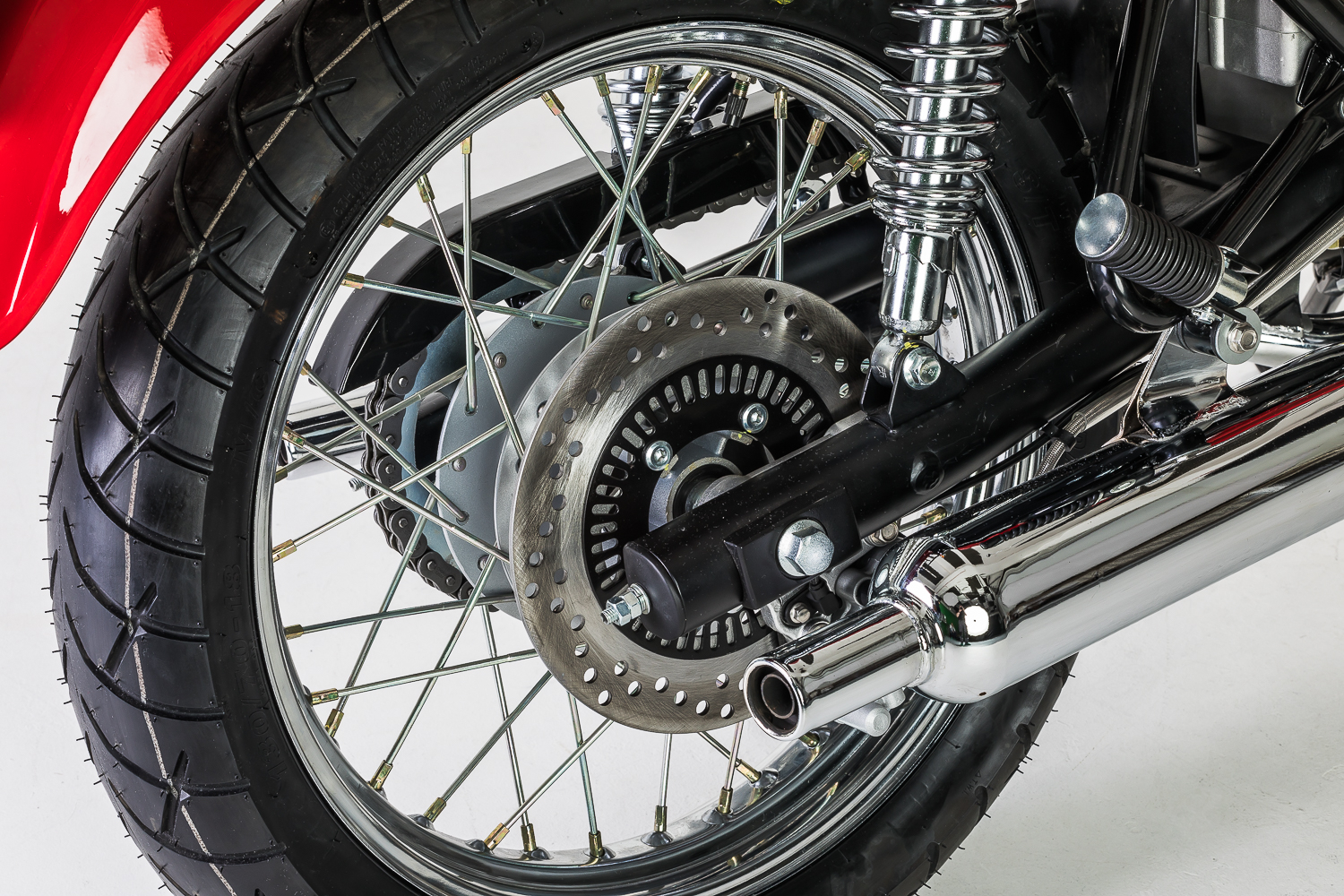

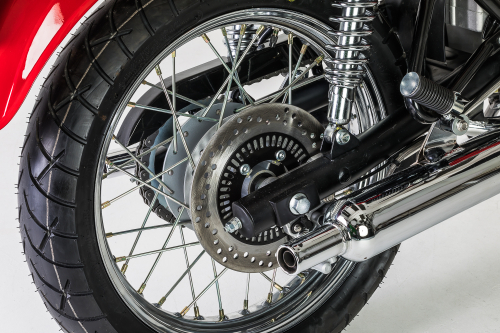

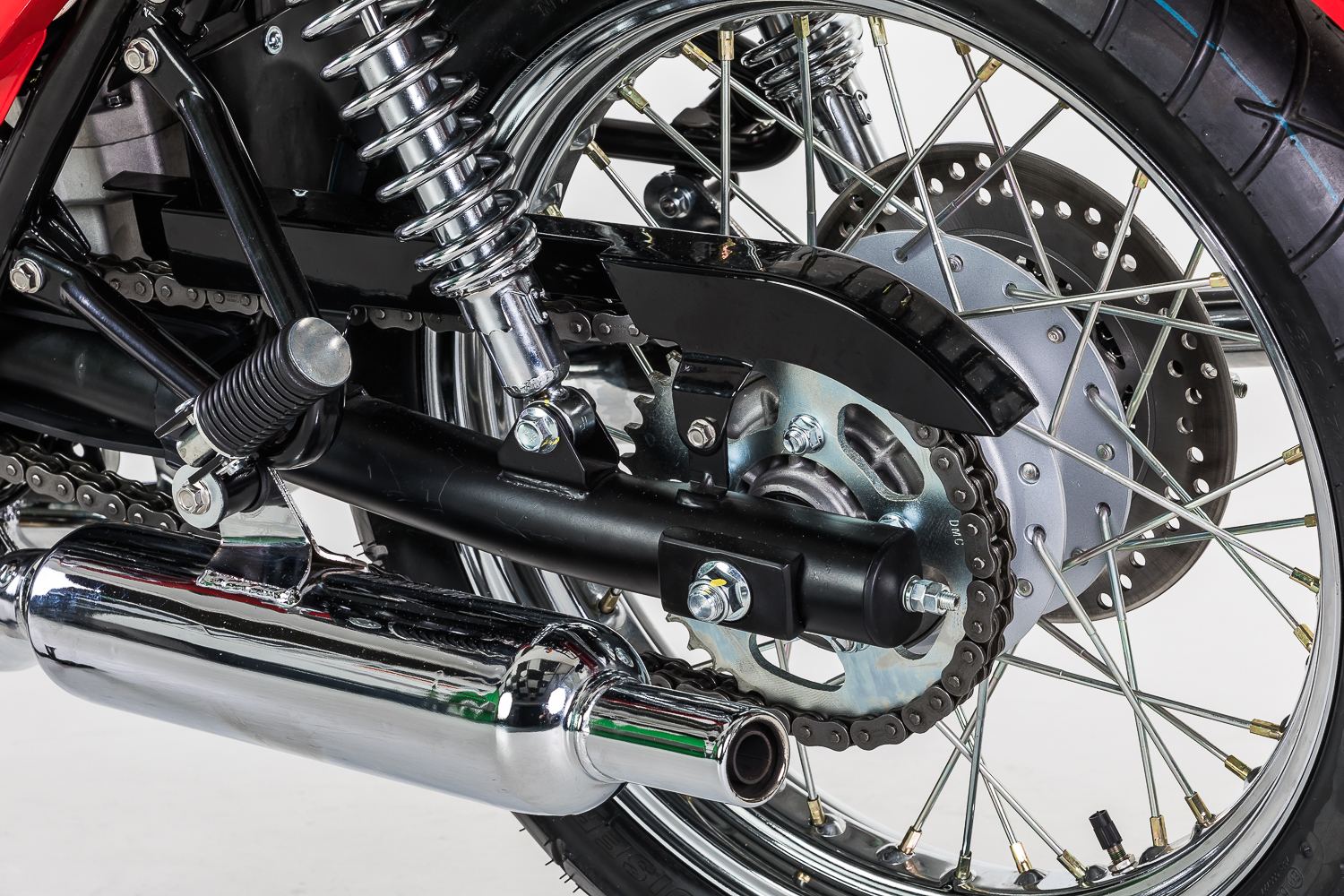

Rear brake disc 240 mm
Curb weight (kg) 160
Maximum speed (km/h) 115

I'm interested in JAWA 350 OHC
